VRayColor

VRayColor Overview

The VRayColor texture map can be used to set any color and also allows you to set a floating point value for the R, G, B, A channels. It can also be used to specify overall opacity for VRayMtl materials.

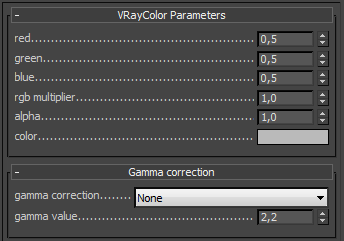

VRayColor Parameters

images/download/attachments/2557472/image2014-12-4_14_42_28.png Red - the value for the Red channel. Note that the full intensity is reached at 1.0 for this parameter (and not 255).

Green - the value for the Green channel. Note that the full intensity is reached at 1.0 for this parameter (and not 255).

Blue - the value for the Blue channel. Note that the full intensity is reached at 1.0 for this parameter (and not 255).

RGB multiplier - this is the multiplier for the color.

Alpha - the value for the Alpha channel. Note that the full intensity is reached at 1.0 for this parameter (and not 255).

Color - you can use this color swatch to visualize the resulting color. You can also double-click it to bring up the standard 3ds Max color picker. Note, however, that the color picker is limited internally to a precision of 8 bits per channel and if you modify the color, the RGB components will snap to the nearest 8-bit level.

Gamma Correction

The VRayColor texture allows you to apply a gamma correction on the displayed colors. Note that this correction is applied only to the displayed color swatch for the Color parameter. The gamma value does not affect the actual RGB values in any way. The gamma correction controls are shared by all instances of the VRayColor texture - if you change them in one VRayColor texture, all other VRayColor textures will automatically pick the new values.

Gamma correction - specifies how to determine if and what gamma correction to apply:

  • None - no gamma correction is applied on the displayed color.

  • Specify - the gamma value is explicitly specified by the Gamma value parameter.

  • 3ds Max - the proper gamma value is derived from the 3ds Max gamma settings as set in the 3ds Max Preferences dialog.

Gamma value - sp ecifies the gamma correction value in the case wh en the Gamma correction param eter is set to Specify.

Notes

  • Black color is represented as 0.0, 0.0, 0.0 for the Red, Green and Blue parameters respectively, white is represented as 1.0, 1.0, 1.0, and middle gray as 0.5, 0.5, 0.5.

  • The Alpha parameter has no effect when the VRayColor map is used in the opacity slot of a VRayMtl material. In this case the opacity value is calculated with the formula: opacity = (R+G+B) / 3.
