VRayCompTex Overview

The VRayCompTex texture map allows us to compose two textures together using one of the provided blending modes.

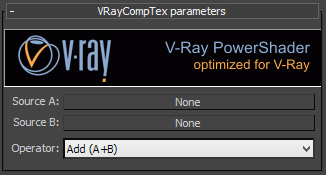

VRayCompTex Parameters

Source A - this is the first of the two textures that are going to be blended.

Source B - this is the second of the two textures that are going to be blended.

Operator - specify the operation from a list of different blend modes.

• Add(A+B) - This blend mode simply adds pixel values of one texture with the other. In case of values above 256 (in the case of RGB), white is displayed.

• Subtract(A-B) - This blend mode simply subtracts pixel values of Source B from Source A. In case of negative values, black is displayed.

• Difference(|A-B|) - Difference subtracts Source B from Source A , to always get a positive value. Blending with black produces no change, as values for all colors are 0. (The RGB value for black is 0, 0, 0). Blending with white inverts the picture.

• Multiply(A*B) - Multiply blend mode multiplies the numbers for each pixel of Source A with the corresponding pixel for Source B. As a simple multiplication can get values as high as 65025, which is far higher than the maximum allowed value, 255, the result is divided by 255. The result is a darker picture. Formula: Result = (Source A Color) * (Source B Color) /255.

• Divide(A/B) - This blend mode simply divides pixel values of Source A by the corresponding values of Source B.

• Minimum(Min{A,B}) - takes the darkest value for each pixel from each source.

• Maximum(Max{A,B}) - takes the brightest value for each pixel from each source.
